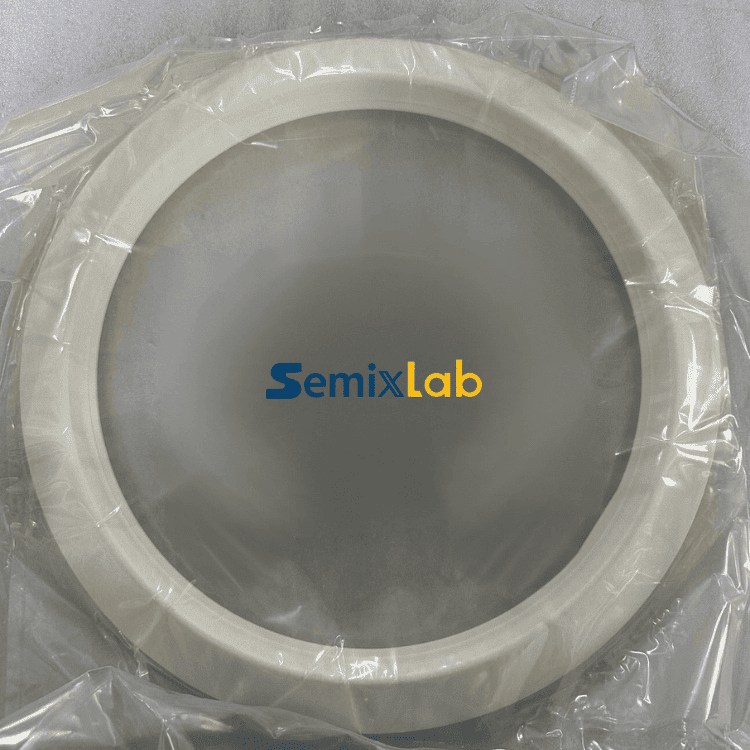

0200-04877 Single Ceramic Ring

The AMAT 0200-04877 Single Ring Ceramics is typically used in plasma etch or deposition chambers within semiconductor manufacturing equipment platforms. Structurally, it belongs to the category of chamber ceramic ring components designed to support plasma confinement, edge process uniformity, and chamber protection.

This component is commonly associated with:

●Plasma Etch Systems

●DPS (Decoupled Plasma Source) Chambers

●HDP-CVD Equipment

●Advanced Semiconductor Processing Platforms

Material Composition and Advantages

The performance of a semiconductor ceramic ring largely depends on its material purity, dielectric stability, and plasma resistance characteristics. The AMAT 0200-04877 Single Ring Ceramics is typically manufactured using high-purity advanced ceramic materials engineered for harsh plasma processing environments.

Depending on specific process requirements, common material systems may include:

●High-Purity Alumina (Al₂O₃)

●Y₂O₃-Coated Ceramics

●Aluminum Nitride (AlN)

●Silicon Carbide (SiC) Ceramics

Among these, high-purity alumina remains one of the most widely adopted materials due to its excellent balance of insulation performance, plasma durability, and mechanical stability.

1. Excellent Plasma Resistance

In fluorine-based plasma environments such as CF₄, NF₃, and C₄F₈ chemistries, chamber components are continuously exposed to ion bombardment and reactive radicals. High-purity ceramic materials provide superior resistance to plasma erosion, helping reduce surface degradation and extend component service life.

2. Low Particle Generation

Particle contamination remains one of the most critical challenges in semiconductor manufacturing. Precision ceramic processing and optimized surface finishing help minimize particle shedding during long-term chamber operation, contributing to improved wafer yield and process stability.

3. Outstanding Electrical Insulation

Ceramic ring components are designed with stable dielectric properties that support controlled RF field distribution inside the chamber. This helps maintain plasma uniformity while preventing unwanted electrical interference during high-density plasma processing.

4. High Thermal Stability

Advanced ceramics maintain structural integrity under elevated temperatures and harsh processing conditions. Their low thermal deformation characteristics help preserve dimensional consistency and process repeatability over extended operating cycles.

5. Excellent Chemical Purity

Semiconductor-grade ceramic materials are manufactured with tightly controlled impurity levels to reduce contamination risks in front-end wafer processing applications, making them suitable for advanced semiconductor fabrication environments.

Position and Function Inside Semiconductor Equipment

Inside semiconductor plasma chambers, the AMAT 0200-04877 Single Ring Ceramics is typically positioned around the wafer processing region, often near the electrostatic chuck (ESC) or plasma confinement zone.

Although compact in structure, its functional importance is significant.

One of its primary functions is to help regulate plasma distribution near the wafer edge. In advanced semiconductor processes, even small variations in edge plasma density can lead to profile deviations, critical dimension inconsistency, or edge over-etch conditions. The ceramic ring helps stabilize the local plasma environment, improving edge process uniformity and enhancing overall wafer yield.

In addition, the ring acts as a protective barrier between the plasma and critical chamber components. By shielding surrounding surfaces from direct ion bombardment, it helps reduce chamber erosion and lowers maintenance frequency.

The dielectric properties of the ceramic material also contribute to RF field management within the chamber. Since plasma behavior is closely related to impedance distribution and sheath formation, the geometry and material characteristics of the ceramic ring directly influence plasma confinement and ion trajectory control.

As semiconductor technologies continue advancing toward smaller nodes and more complex device architectures, chamber process stability becomes increasingly dependent on precision-engineered components such as ceramic rings. For this reason, the AMAT 0200-04877 Single Ring Ceramics is considered an important plasma process control component in modern semiconductor manufacturing systems.
